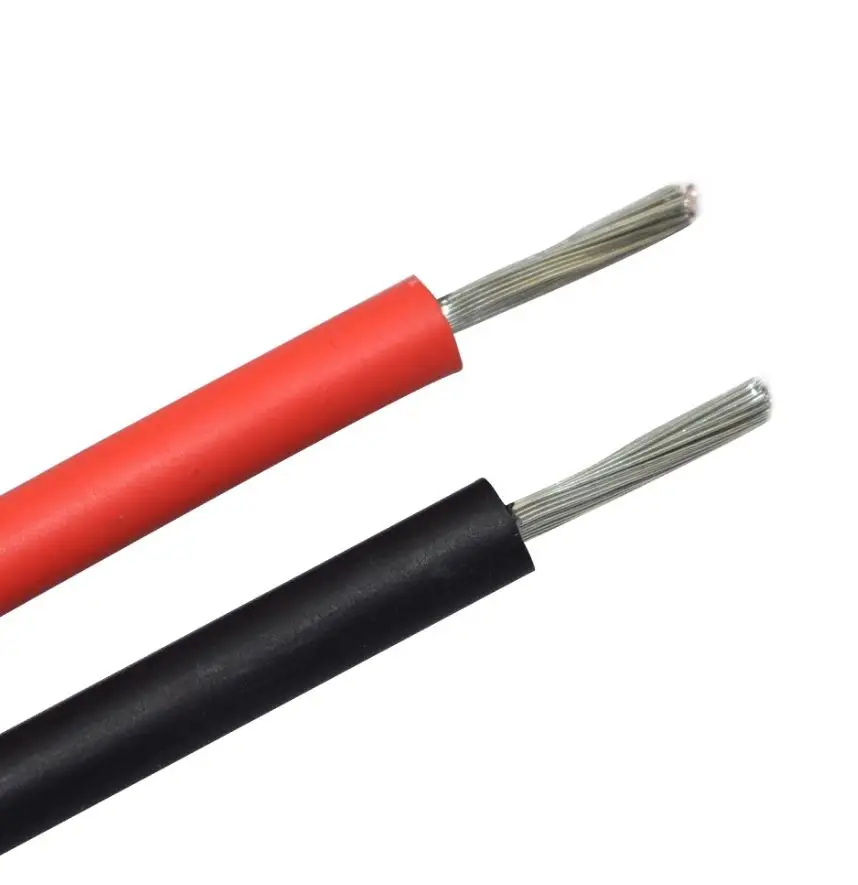

Factory Wholesale Solar Cable 10mm2 6mm2 4.0mm2 PV Cable with TUV,SAA JIL certification for solar systems
Reduced price
Price
$32.99
Regular price
$0.00
Unit price
per
Product Description
Fuji Batteries Canada offers several specialty wiring components to help complete your system. Solar panel to Controller Cables, Controller to Battery Cables, Battery Interconnect Cables, and Battery to Inverter Cables will be necessary for any system with batteries. We also offer MC4 connectors, MC4 Parallel branch connectors and MC4 Assembly tool. In addition to wiring between solar modules, between batteries, and between the battery bank and inverter, you will also need wiring from the combiner box to the battery bank - sometimes known as the home-run. Because wire is available in most locations, the wire size needed can vary, and wire tends to be heavy, and expensive to ship, we tend not to sell it by the foot.
Fuji Batteries Canada a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for
customization based on a customer's unique needs.
Fuji Batteries Canada a wide range of lengths, as well as two different gauge sizes to choose from. The different sizes allow for
customization based on a customer's unique needs.
Key Features
★ Dual wall insulation.Electron beam cross-linked.
★ Excellent resistance to U.V,oil,greases,oxygen and ozone.
★ Excellent resistance to abrasion.
★ Halogen free, flame retardant,low toxicity.
★ Excellent flexibility and stripping performance.
★ High Voltage and Current carring capacity.
★ CE,TUV,IEC,BS,SAA,JIS and UL approved.
★ Excellent resistance to U.V,oil,greases,oxygen and ozone.
★ Excellent resistance to abrasion.
★ Halogen free, flame retardant,low toxicity.
★ Excellent flexibility and stripping performance.
★ High Voltage and Current carring capacity.
★ CE,TUV,IEC,BS,SAA,JIS and UL approved.
Very Important Reminder:
Our Shop price based on 4.0mm2, if you want to buy other size cables, please contact our sales people to confirm the best offers before you give us a order.
Specification
|
Specification
|
|
Condstruction (n * mm2)
|
|
|
|
||||
|
|
|
2.5mm 2
|
4.0mm2
|
6.0mm2
|
10.0mm2
|
||||
|
Rating Voltage
|
|
1500V
|
|
|
|
||||
|
Conductor
|
Conductor structure
|
Class 5 Tinned copper conductor
|
|
|
|
||||
|
|
Material
|
Tinned copper wire（TXR)
|
|
|
|
||||
|
|
Number of wires in conductor
|
43/0.256
|
56/0.28
|
84/0.28
|
142/0.28
|
||||
|
Insulation
|
Material
|
Polyolefin copolymer electron-beam cross-linked
|
|
|
|
||||
|
|
Insulation OD(mm)
|
3.85
|
4
|
4.6
|
6.5
|
||||
|
|
Color
|
Black
|
|
|
|
||||
|
Sheath
|
Material
|
Polyolefin copolymer electron-beam cross-linked
|
|
|
|
||||
|
|
Sheath OD(mm)
|
5.4
|
5.5
|
6.3
|
7.8
|
||||
|
|
Color
|
Black/Red
|
|
|
|
||||
|
Max. Resistance AC20oC ohm/ km
|
|
8.21
|
5.09
|
3.39
|
1.95
|
||||
|
60oCA Ampacity （60oCA）（A）
|
|
41
|
55
|
70
|
98
|
||||
|
Environmetal temperature
|
|
-40℃~90℃
|
|
|
|
||||
|
Application standards
|
|
EN H1Z2Z2-K
|
|
|
|
||||
Product Details
